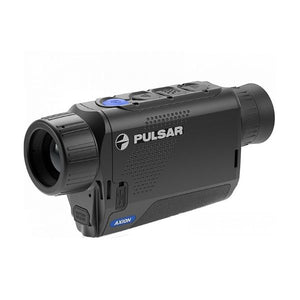

The Pulsar Axion XM30 Hand Held Thermal Monocular is packed with high-tech features yet is designed to fit perfectly in one hand or in a standard-size pocket. This ensures comfortable grip and handling, as well as easy carrying. The compact design also makes Axion the perfect thermal imaging monocular for scouting and spotting.
KEY FEATURES
Detection Range
- Powerful objective lens in combination with a 12 µm professional grade thermal imaging sensor provides exceptional detection capabilities. A standard 1,8 m (6 ft) tall object can be detected at a 1200 m distance in complete darkness.
12 µm Thermal Imaging Sensor
- New thermal imaging sensor with 12 µm pixel pitch helps to achieve higher optic magnification and observation distance and simultaneously helps to make the unit more compact.
Rugged Magnesium Alloy Housing
- Housing made from light weight magnesium alloy ensures high structural rigidity and ruggedness while retaining small weight and ergonomics.
B-Pack Mini Power System
- Miniature power elements used in Axion models provide sufficient operation time and can be quickly replaced. B-Pack mini batteries can be quickly charged either with included charger station or in the unit connected to USB.
SPECIFICATIONS:
- Detection range, 1300 m
- Objective lens F28/1.2
- Magnification, 4 – 16 x (x4 zoom)
- Sensor Type, un-cooled
- Resolution, 320x240 pixels
- Pixel pitch, 12 µm
- Frame rate, 50 Hz
- Field of view (HxV), 7.8x5.9 / 13.7x10.3 degrees / m @ 100 m
- Display - AMOLED
- Video Recorder resolution, 1024x768 pixel
- Video / photo format .mp4 / .jpg
- Built-in memory, 16 Gb
- Operating temperature range, -10 to +40 °С
- Dimensions, 143x41x69 mm
- Weight, 0.25 kg
- Output voltage, 3.0 - 4.2 V
- Battery type Li-Ion Battery Pack APS3
- Capacity, 3200 mAh
- Operating time on battery pack (at t=22°C), 4+h *
- External power supply 5V
EXTRA FEATURES
High Optic Magnification
- Axion offers the highest magnification in the class of compact thermal imagers. Considerable optic magnification can be increased by means of digital zoom to provide the best identification of observed objects.
Instant Start-up
- Thanks to the new revolutionary electronics unit can be started almost instantly. Quick start-up helps to save energy and thus prolongs time of operation. The unit can be kept in a pocket and then rapidly activated when the right time comes.
Video and Still-Photo Recording
- The built-in video recorder is a great asset when it comes to filming or taking photos of once-in-a-lifetime experiences. One press of the REC button captures footage that can be shared easily with colleagues, friends and family. 16 Gb of internal memory provide many hours of recorded video and tons of photos.
Stream Vision App Supported
- Built in Wi-Fi module provides connectivity of Axion with Android or iOS smartphones or tablets. The smartphone and thermal imager combination offers a set of unique features such as direct image streaming, downloading and sharing recorded files, firmware update and many other.
HD AMOLED Microdisplay
- High contrast AMOLED micro display of HD resolution offers crisp image and vivid colours. Display ensures excellent image quality and flawless performance even in freezing temperatures. Key models come with LCOS microdisplay
IPX7 Waterproof Rated
- IPX7 waterproof-rated for protection from heavy rainfall, snow or other precipitation. The Axion is designed to run flawlessly, even after submersion in up to 3 feet of water for up to 30 minutes.
Lightweight
- Small weight becomes important when outdoor trip is long and each piece of equipment adds to a total load that has to be carried on the back. Axion weighs around 300 grams not more than a regular rangefinder unit but offers far more significant capabilities.
Picture in Picture Function
- Upon activation Picture in Picture function displays second small image with magnification in the top part of the screen. Small image helps to zoom in on a target while retaining the rest of the field of view visible.
Download the Manual HERE.
Buy with confidence with Pulsar's 3-year Warranty.
