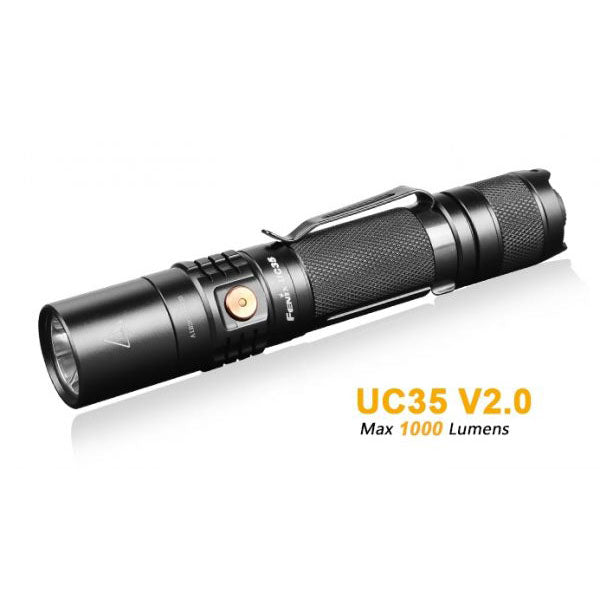

The Fenix UC35 V2.0 – 1000 Lumens Rechargeable LED Torch is the more recent upgrade of the Fenix UC35 flashlight. Fitted with the Cree XP-L HI V3 LED, this light delivers a maximum 1000 lumens at a distance of 873 feet (266 meters). Turn the light on and off with the tactical tail switch and cycle through the six lighting modes via the newly designed metal side switch—which also has a built-in battery level indicator. You can achieve an incredible 800 hours of runtime when using the new moonlight brightness level. Compact and built-tough, the UC35 V2.0 flashlight is IP68 rated; dust proof and waterproof underwater to two meters.
Upgrade improvements over prior UC35: -XP-L HI v3 LED provides greater brightness, efficiency and throw -Improved stainless steel side switch with battery level indicator -New body design is more compact -Includes higher capacity 3500 mAH rechargeable battery for longer runtime -USB port improved to charge faster and is easier to activate -Improved waterproof and dust-proof rating (IP68)
SPECIFICATIONS
Cree XP-L HI V3 LED with a maximum output of 1000 lumens
Output and Runtime:
1000 Lumens – 2h15mins
350 Lumens – 4h10mins
150 Lumens – 10h40mins
50 Lumens – 28h10mins
1 Lumens – 800hrs
1000 Lumens – Strobe
Dimensions:
Length: 140mm
Diameter: 23.5mm
Head: 25.4mm
Weight: 89g excluding battery
What’s Included:
Fenix UC35 V2.0 Flashlight,Micro USB charging cable,Spare rubber switch boot, Lanyard, Spare O-ring, Holster, ARB-L18-3500 Battery.
OPERATIONS
Switches
The tail switch is the tactical, and the side switch the functional switch.
ON/OFF
Tap
Tap the tactical switch to momentarily turn on the light; release it and the light will go out.
Fully press
Fully press the tactical switch to constantly turn on the light; press once again to turn off the light.
Output Selection
With the light switched on, single click the functional switch to cycle through Turbo→Moonlight →Eco→Low→Med→High.
Strobe
With the light switched on, press and hold the functional switch for 0.5 seconds to enter strobe, click once again to return to General mode.
Boot-up Battery Level Indication
Each time the light is turned on, the battery level indicator will automatically display the battery status for 3 seconds.
Green constant on: saturated
Green flashes: sufficient
Red constant on: poor
Red flashes: critical
Note: There is no indication when CR123A battery is used.
Intelligent Memory Circuit
The light memorizes the last selected brightness level on General mode. When turned on again the previously used brightness level will be recalled.
Intelligent Protection
The light will accumulate a lot of heat when working at Turbo mode. When the light is overheated up to 60°C or above, the flashlight will automatically step down a few lumens to reduce the temperature; when the temperature is lower than 60°C the output will gradually return to Turbo output level.
Low-voltage Warning
When the voltage level drops below 3V, the flashlight is programmed to downshift to a lower brightness level until Moonlight output is reached. When this happens in Moonlight mode, the battery level indicator will flash red to remind you to replace the battery. To ensure normal use, the flashlight will work until the battery runs out or the battery over-discharging protection activates.
Note: This only works with rechargeable Li-ion 18650 battery.
Charging
1. Turn off the light. Plug the USB side of the charging cable into any USB power supply. Uncover the dust cover of the light, and plug the Micro USB side of the charging cable into the charging port of the light.
2. The battery level indicator displays red while charging and turns to solid green when charging is complete. The normal charging time of the included Fenix ARB-L18-3500 is about 3.5 hours.
3. Once charging is completed, be sure to remove the charging cable and replace the dust cover to protect against dust and foreign objects.
4. Recharge a stored light every four months to maintain optimum performance of the battery.
5. Only Low output can be used while the light is being charged, but charging time will be prolonged.
