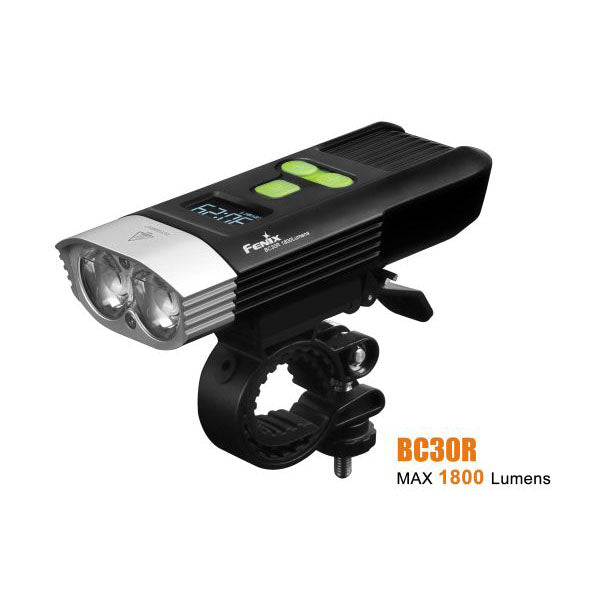

The newly updated rechargeable bike light is made for extended rides. The Fenix BC30R 1800 LED Bike Light is Fenix’s first digital display screen light that provides exact runtime readings, output modes and remaining battery life. This go-anywhere bike light also features a built-in rechargeable battery with a Micro-USB for flexible charging options.

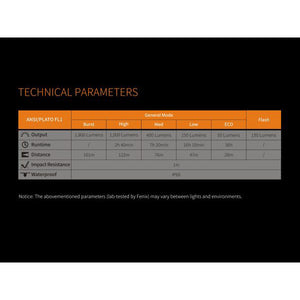

SPECIFICATIONS

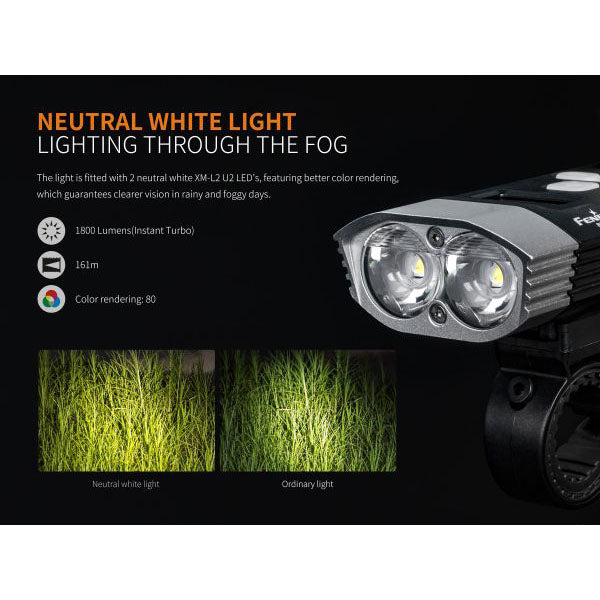

- Cree XM-L2 U2 neutral white LED with a maximum output of 1800 lumens

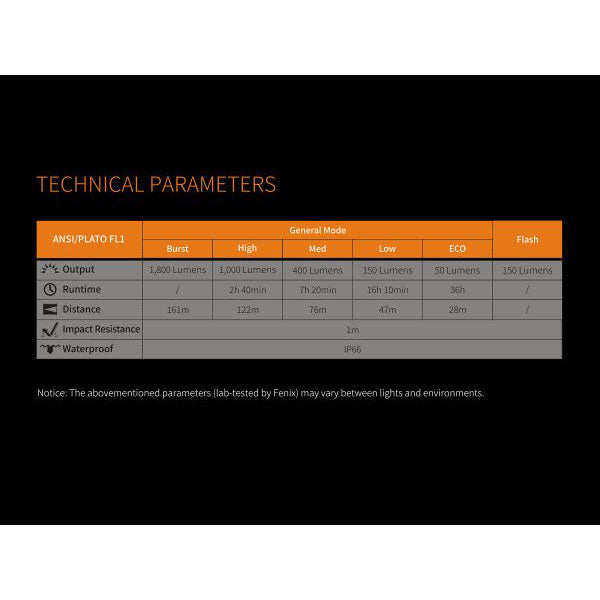

- Output and Runtime:
- 1800 Lumens – Burst
- 1000 Lumens - 2h40mins
- 400 Lumens - 7h20mins
- 150 Lumens - 16h10mins
- 50 Lumens - 36hrs
- 150 Lumens - Flashing

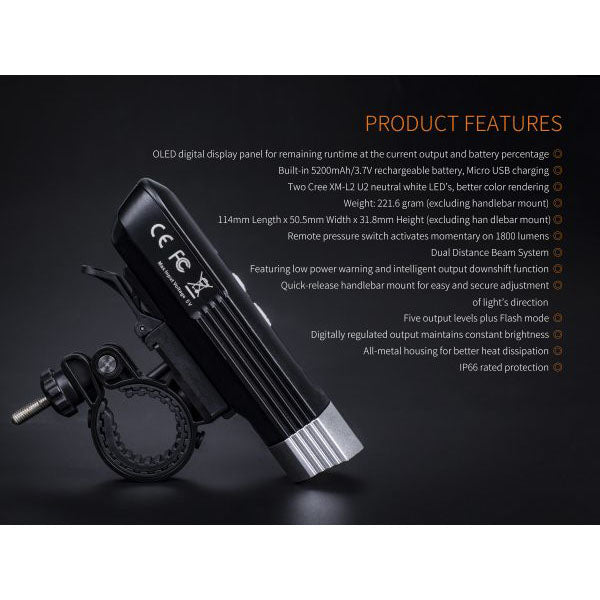

- Dimensions:
- Length: 114mm
- Diameter: 50.5mm
- Head: 31.8mm
- Weight: 240g including battery but excluding mount
What’s Included:
Fenix BC30R Bike Light, BC30R handlebar mount, remote pressure switch, dedicated USB charging cable, handlebar mount shims (one thick and one thin)
OPERATIONS
1. Press and hold the for 0.5 seconds to turn ON/OFF the light, with the light on, the light will display Fenix boot screen, then automatically check the remaining battery level and runtime.
2. With the light switched on, double click the to enter Flash mode, click once again any switch, the light will return to general mode.
3. With the light switched on, single click to turn up output levels, one press for a higher level until to the supported highest. Single click to turn down output levels, one press for a lower level until to the lowest.
4. With the light switched off, press to check the battery level, the light will go out automatically after 5 seconds.
Remote Pressure Switch
1. Press and hold the switch for 0.5 seconds to turn ON/OFF the light, the light will display Fenix boot screen, then automatically check the remaining battery level and runtime.
2. With the light on, click the switch, to cycle through High→Eco→Low→Med.
3. In any status, press the switch to enter the supported highest brightness at current battery level, release the light will return to previous status, press and hold switch for constant 20-second illumination (with sufficient battery level), then the light will return to previous status.
4. With the light switched off, click the switch to check the battery level, the light will go out automatically after 5 seconds.
Note:
1. The light will accumulate a lot of heat when used on High output level for extended periods. it will automatically downshift to reduce temperature.
2. The light memorizes the last selected brightness level on General mode. When turned on again the previously used brightness level will be recalled.
3. When the battery power level is not sufficient, higher brightness levels can not be activated, the bicycle light is programmed to cycle through lower brightness levels.
Low Power Warning and Intelligent Output Downshift
Low Power Warning: With the light on, when the runtime is less than 30 minutes, the switch will blink red constantly, to remind you to downshift to a lower brightness level to extend runtime or to recharge the bicycle light ASAP.
Intelligent Output Downshift: If non-stop use is needed, the light will downshift to a lower output level to extend runtime. When the light downshifts to Flash mode, indicating it will go out soon. Stop riding and replace the battery or bicycle light.
Charging
One standard Micro USB charging cable is included, which can be used for charging other digital devices.
Operation: Remove the anti-dust plug of the bicycle light to reveal the charging port, and plug the Micro USB end of the USB cable into the light’s charging port, then connect the other end of the USB cable to a USB power adaptor.
Charging Indicator: The indicator light on the switch flashes green to indicate charging. Then turns solid green when the battery is fully charged. Fenix recommends using a power adaptor with output of 5V,1.5A. It takes about 5 hours to fully charge the bicycle light.
Note:
1. Once charging is completed, be sure to remove the charging cable and replace the anti-dust cover.
2. Using the bicycle light when charging is not recommended by Fenix. But it is possible for emergency, the bicycle light can only be used on Eco output when charging, but the charging time will be prolonged or the battery will be less charged.
Mounting Instruction
Bicycle Light and Remote Switch
1. Open the rubber seal under the bicycle light and plug the cable of the remote pressure switch into it.
2. Loosen the fine adjustment screw of the handlebar mount before clamping the mount to the bar by securely tightening the set screw.
3. Slide the headlight into the mount until an audible “click” is heard.
4. Attach the Remote Switch to your bars where it is easy to operate, using the Velcro strap provided.
Note:
1. Adjust the direction of the headlight before testing the power and functions of the bicycle light.
2. Use proper shim provided to the size of the bicycle’s bars. (Thick + thin shims applicable size: 22-28mm, thin applicable size: 28-32mm). With no shim: 32-35mm.
